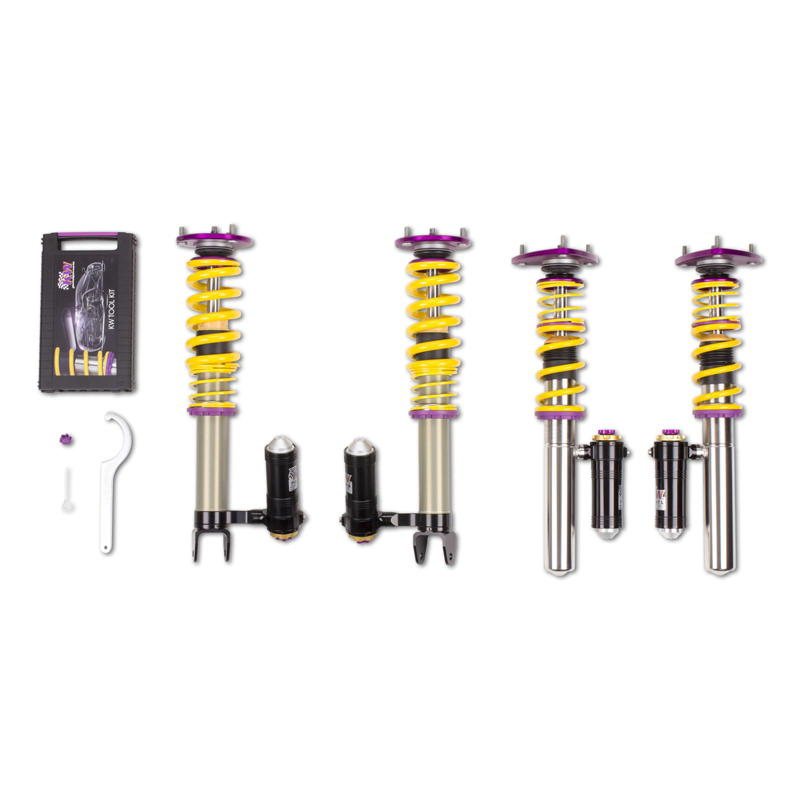

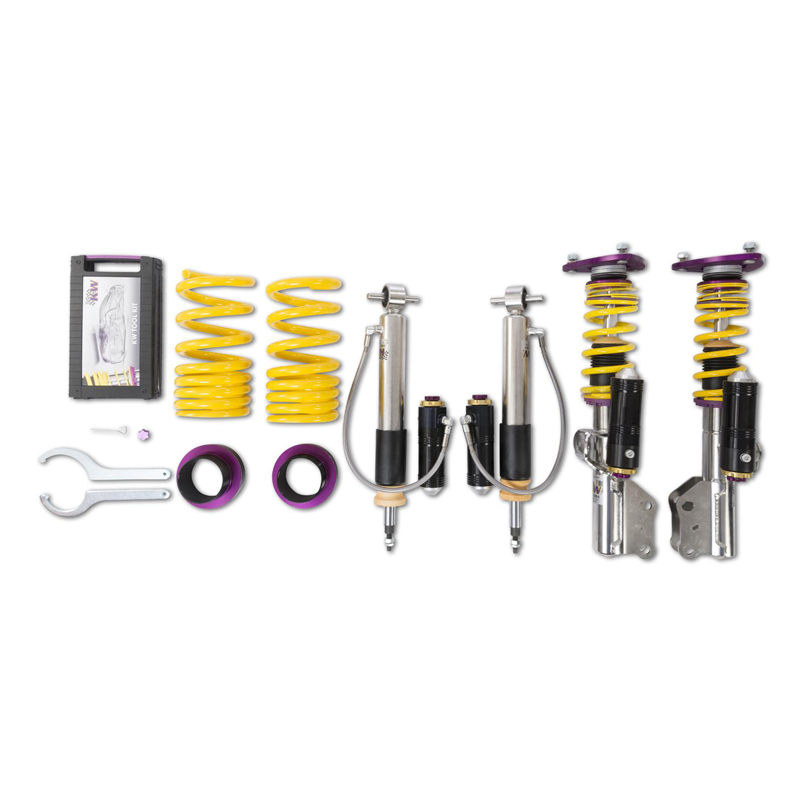

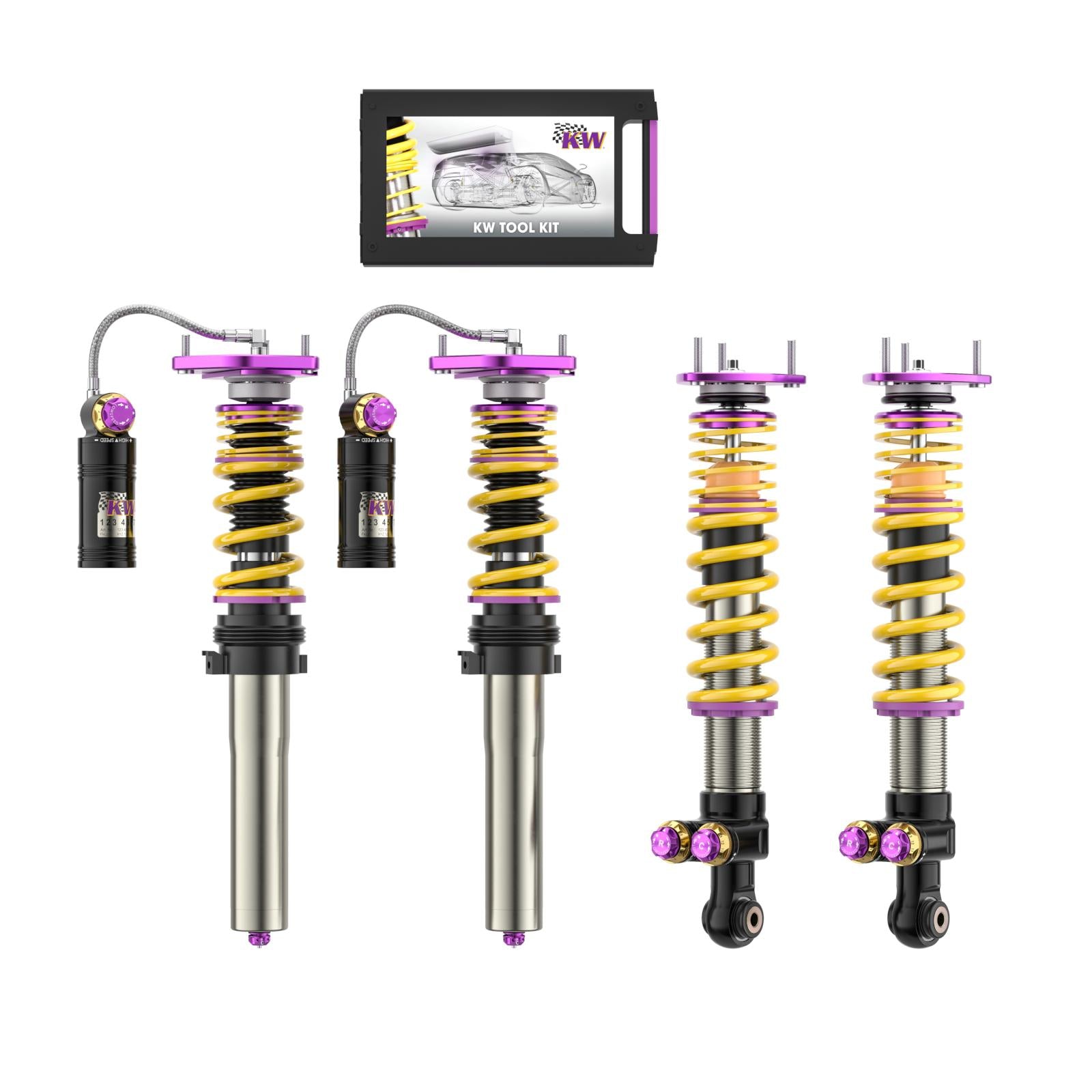

KW V4 Clubsport Coilovers - Porsche 911 (991) GT3 RS / GT2 RS

KW V4 Clubsport: 3-way damping adjustable coilovers: The technology of the 24-hour race winner.

The KW V4 Clubsport coilover suspension was developed through extensive testing on the Nürburgring Nordschleife and KW’s sophisticated 7-post dynamic test rig. This coilover system can be further adjusted using click settings to match corner weights, vehicle weight, and changes in chassis stiffness, such as a bolt-in cage, a welded safety cell, or strut braces.

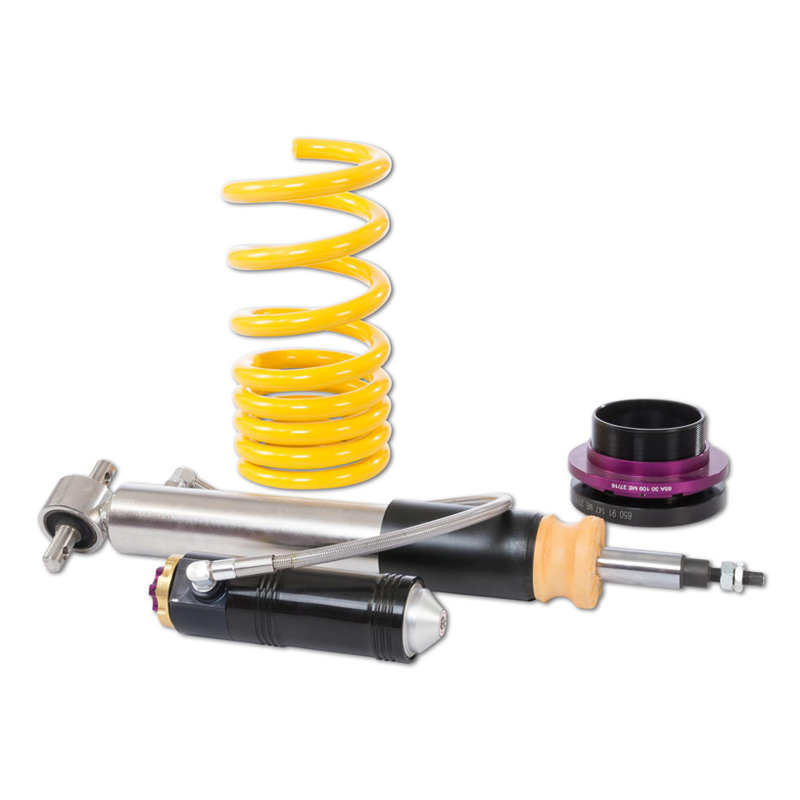

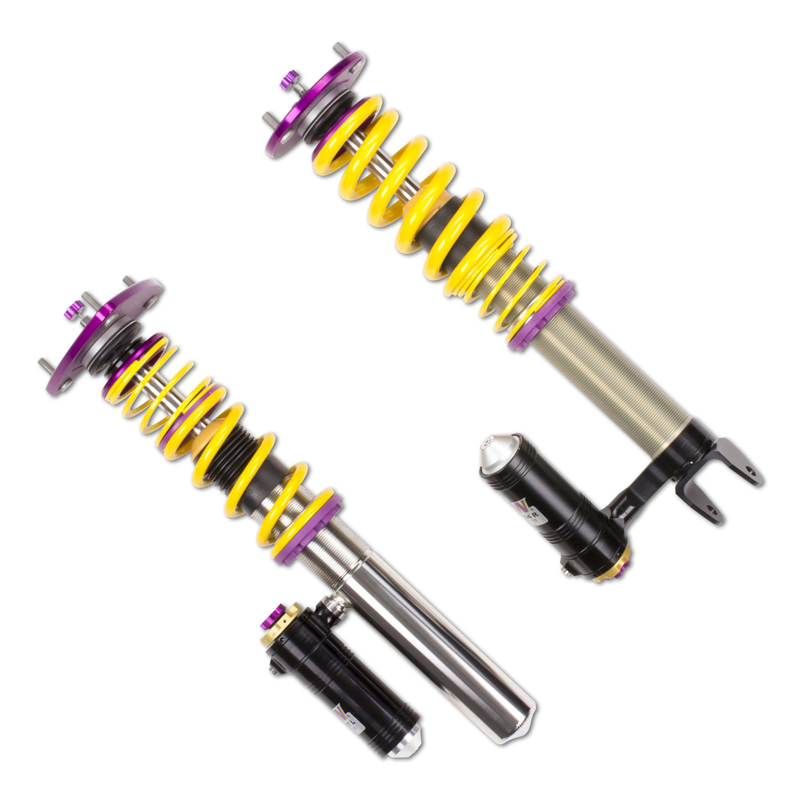

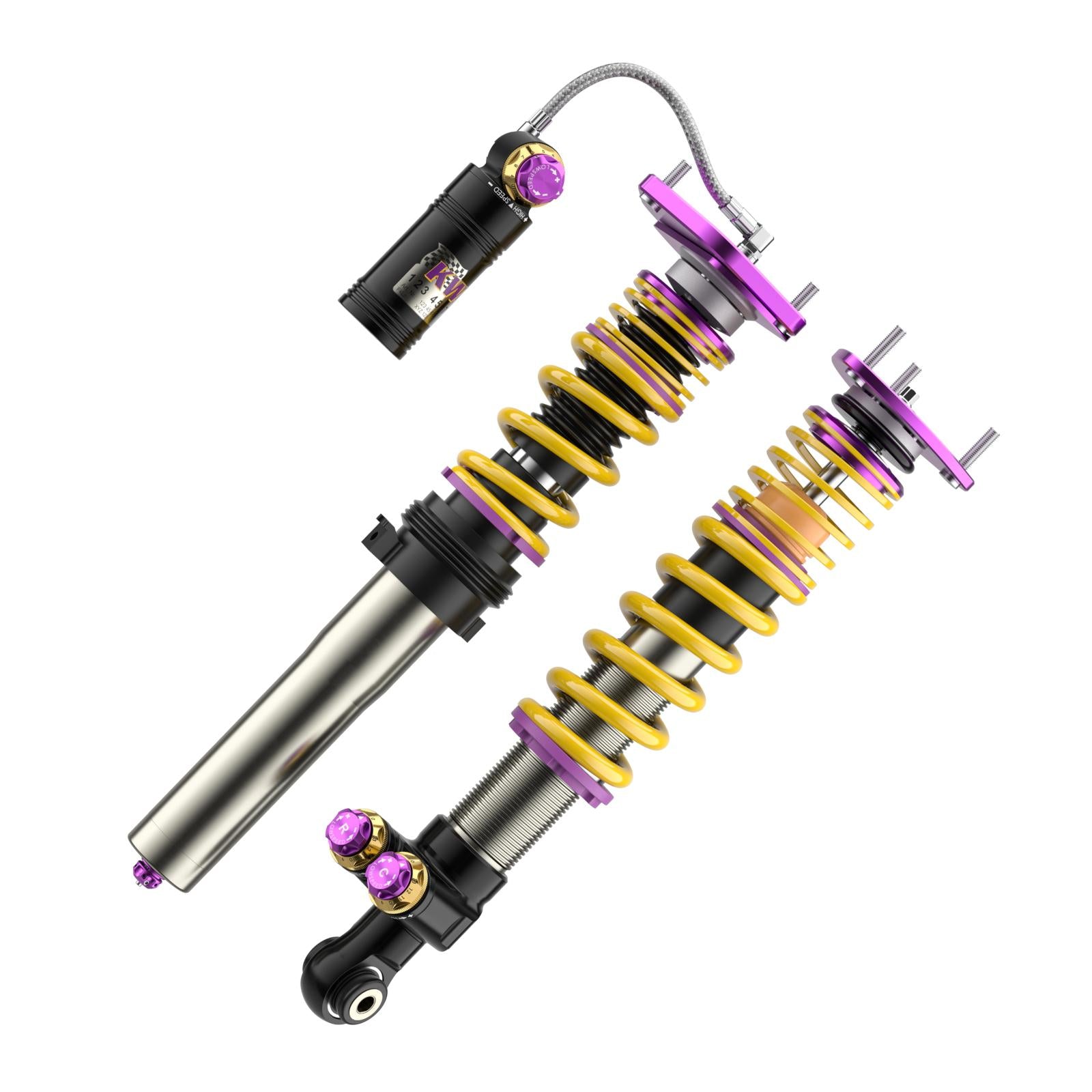

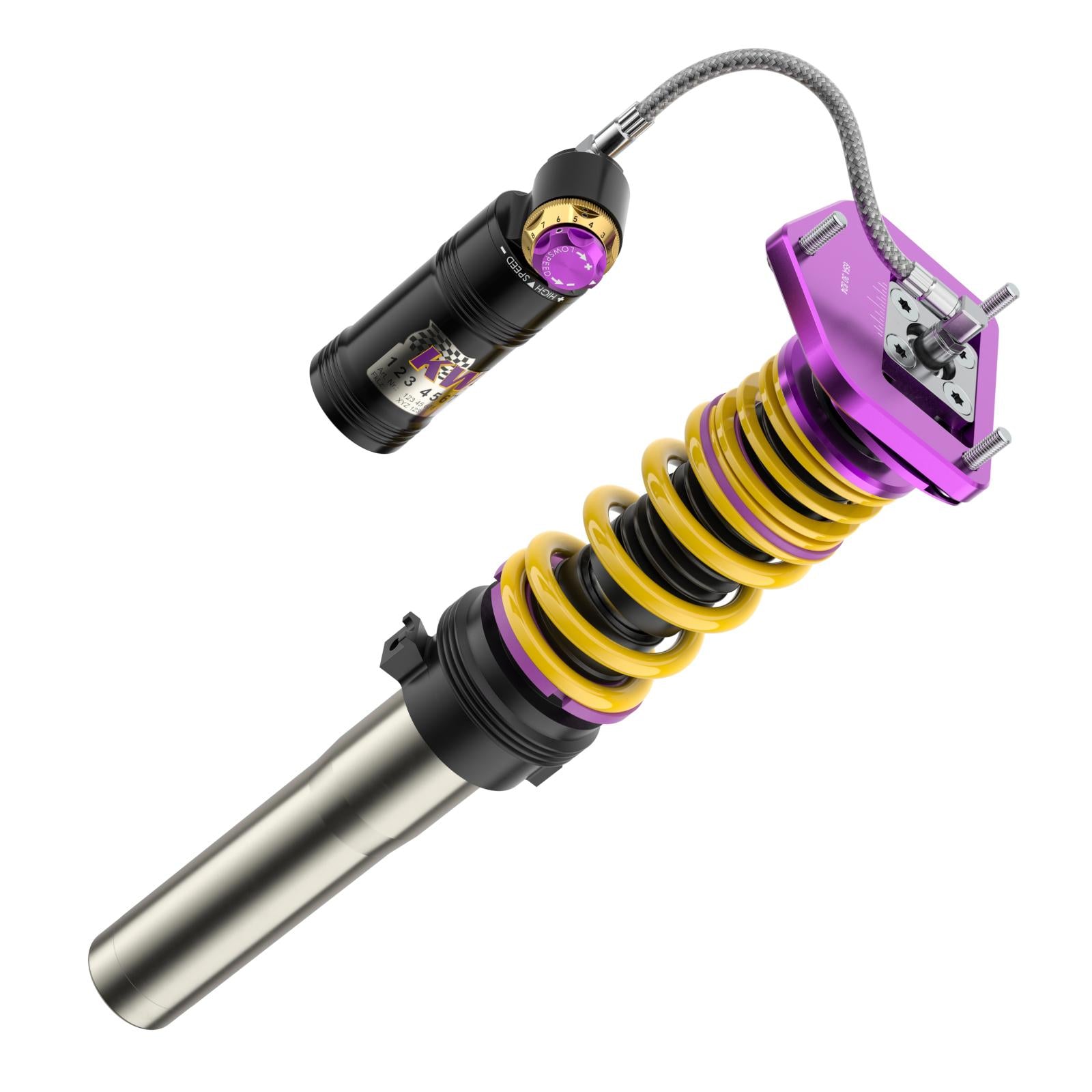

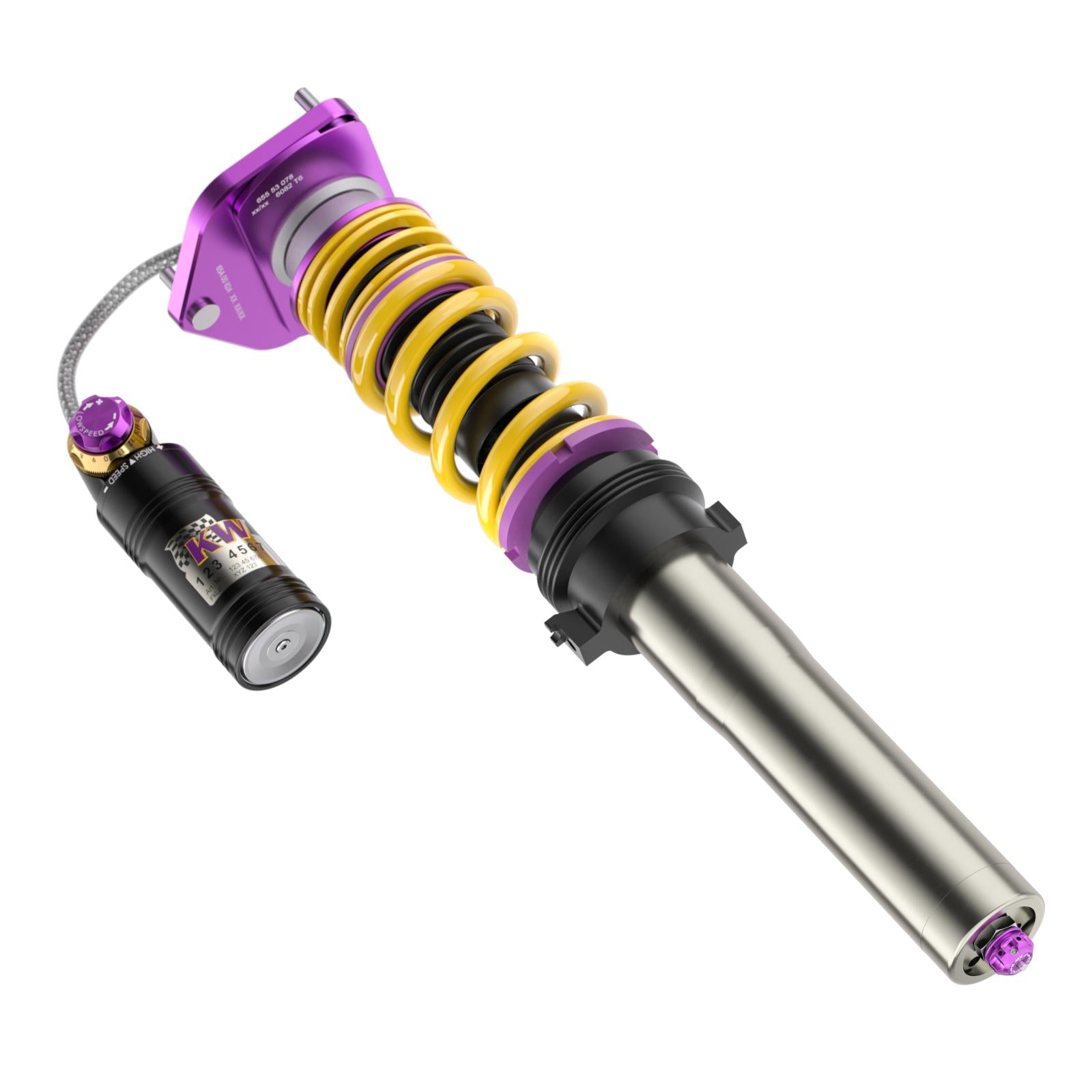

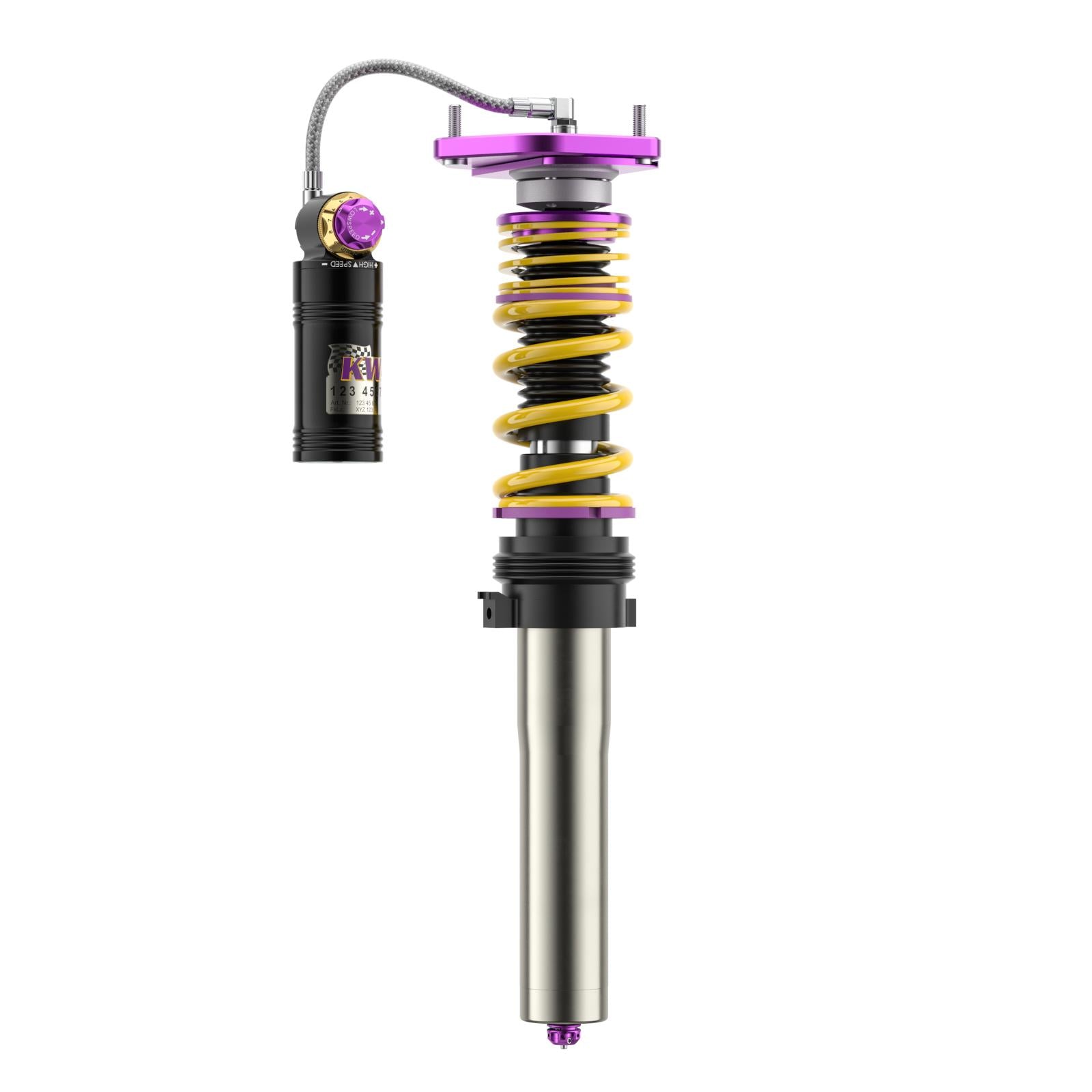

At the front axle, damper forces are generated at the working piston of the KW single-tube damper and by the low-speed and high-speed compression valves located in the external reservoir. For precise tuning to the track layout, the integrated click adjusters offer 16 clicks for rebound, 13 clicks for low-speed and 14 clicks for high-speed compression damping. The independent reservoir also allows for gas pressure volume adjustment.

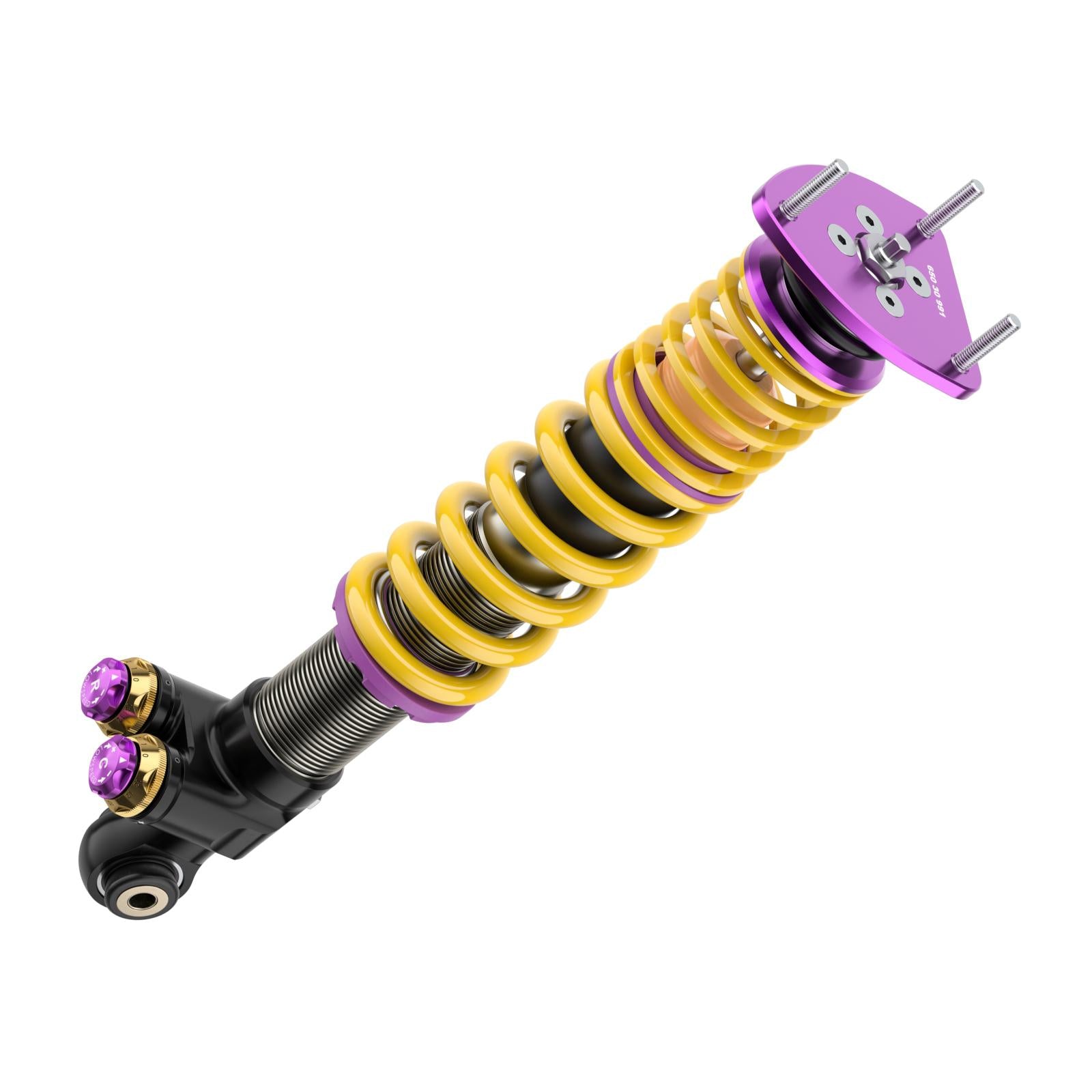

At the rear axle, KW uses 4-way adjustable KW twin-tube dampers with displacement pistons (KW Solid Piston Technology). An external reservoir is not required. The compression and rebound valves, arranged in series, are located separately from the working piston. Individual damper settings are made using the purple and yellow click adjusters located directly on the damper body.

With 13 precise clicks for each of the 14 positions, the low-speed and high-speed damping forces for both compression and rebound can be adjusted. Even with minimal suspension travel, steering input, or small surface irregularities, the suspension responds instantly.

KW V4 Clubsport technology: Upside-down front suspension for Road & Track

• Upside-down single-tube damper design to resist extreme lateral forces.
• 16-click adjustable rebound damping.
• 13-click low-speed and 14-click high-speed compression adjustability.

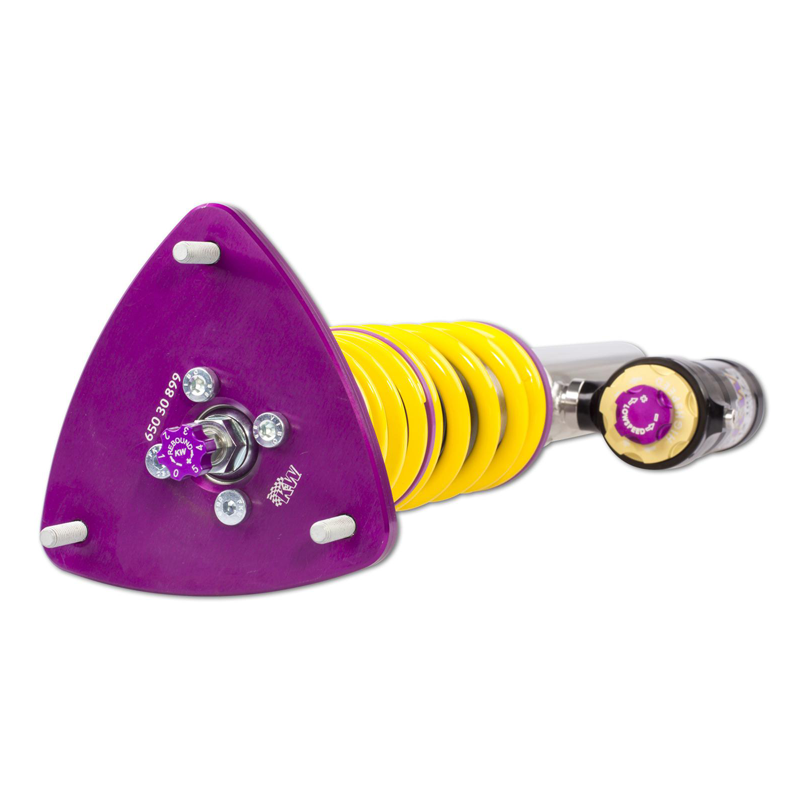

• Aluminium uniball top mounts.
• Continuously adjustable lowering.
• Certified adjustment range.
• High-quality components for long service life.
• Unique, independently adjustable damping available for technically appropriate applications with aluminium uniball top mounts.
