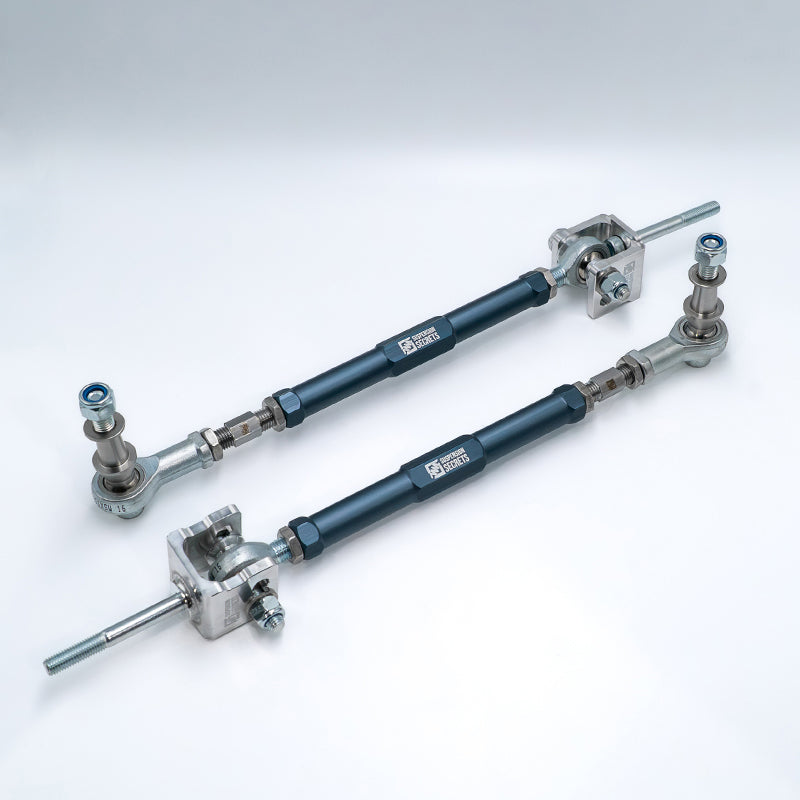

Take the on-track performance of your Corvette C8 to the next level by installing the Suspension Secrets Adjustable Rear Toe Arms / Links.
When setting your Corvette C8 up for track use two problems often occur. Toe adjustment becomes limited on the standard rear toe link when you begin to dial in more camber for track use. Next, when lowering the car, you start to induce bump steer into the rear axle due to the angle of the rear toe link.

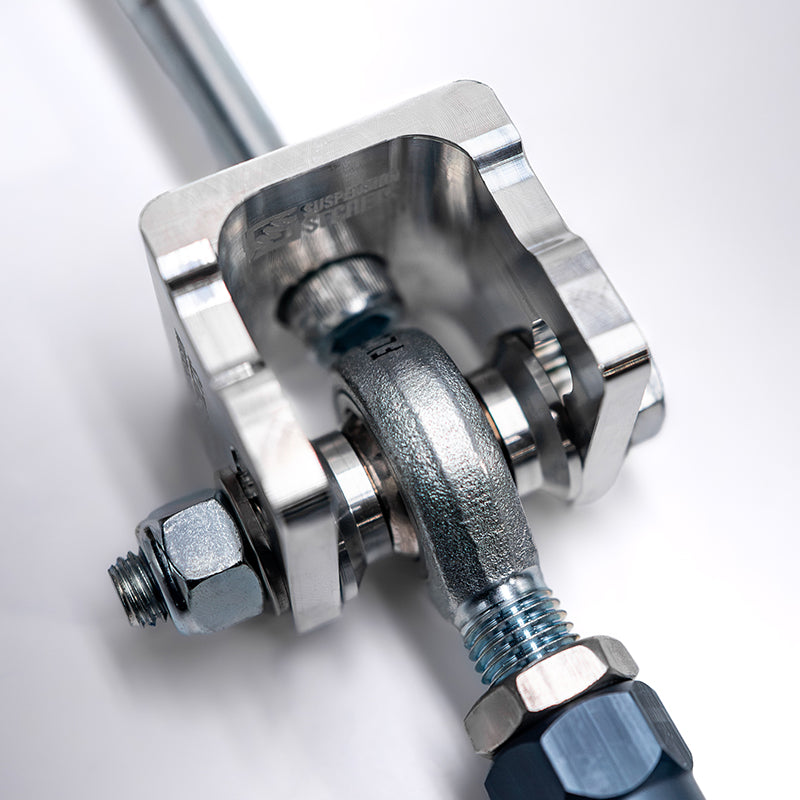

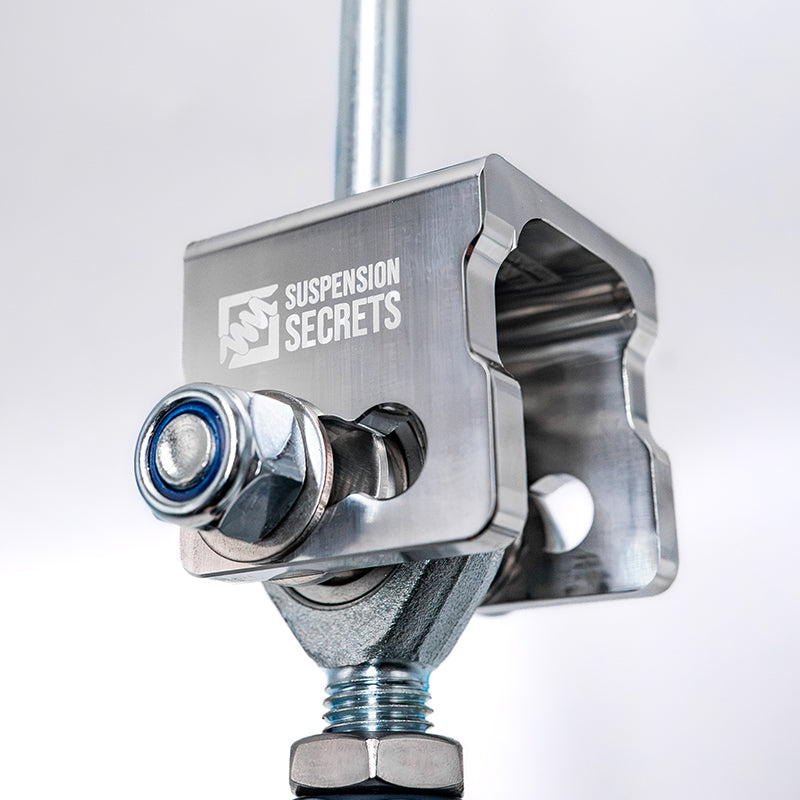

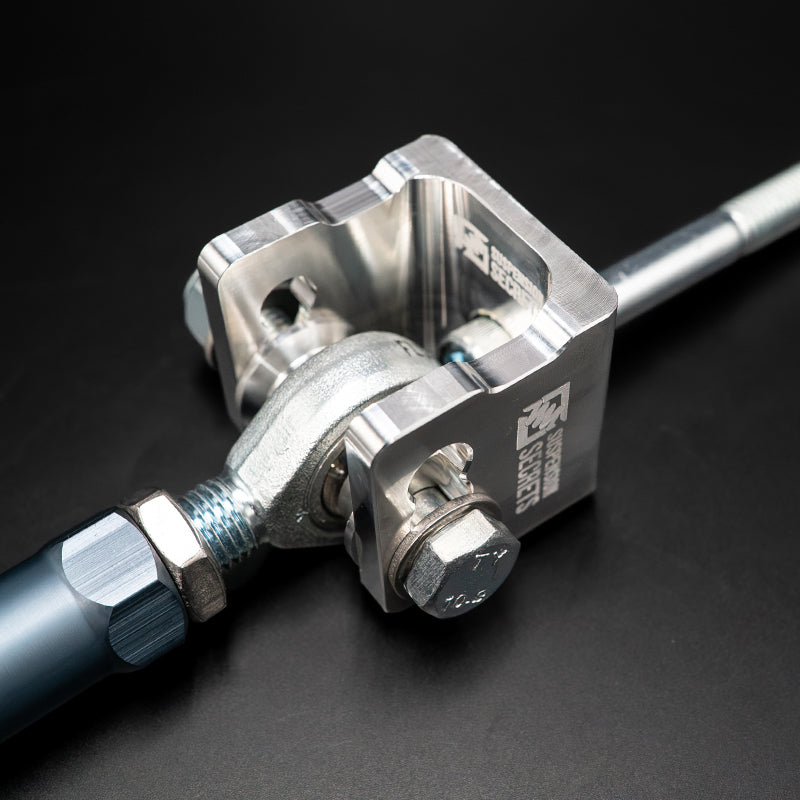

To solve these issues we have designed the Suspension Secrets Adjustable Rear Toe Arms / Links for your Corvette C8 Z06 / Z07 / ZR1. Utilising a precisely machined billet aluminium bracket, ur rear toe arm mounts perfectly into your rear subframe, offering 3 mounting positions, allowing you to dial out the bump steer at the rear axle when lowering it for track use.
Removing the bump steer improves rear axle stability substantially out on track and on the roads by keeping toe angles more consistent, offering better stability and grip from the tires.

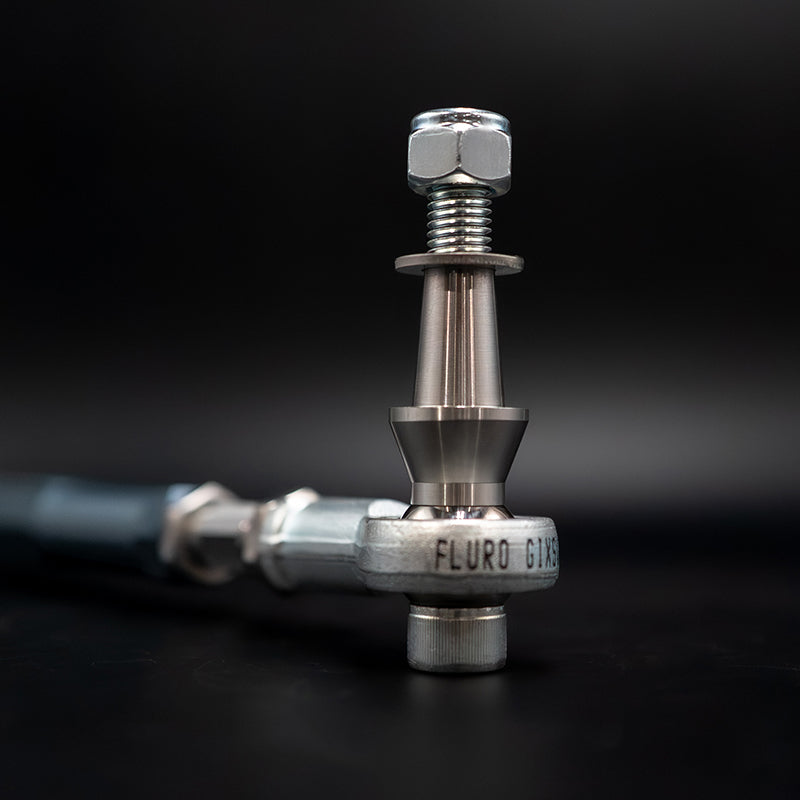

With our outboard adjuster, the range of toe angle adjustment is also increased over the standard rear toe link, providing a wider range of settings in terms of toe angle, unlocking the potential to set rear camber and toe values exactly where you need the to get the most out of the chassis and tire.
Our adjustable rear toe arms are solidly mounted, which increases cornering stability as the toe angle remains constant throughout the duration of a corner.
The key features of our Suspension Secrets Adjustable Rear Toe Arms / Links for the Corvette C8 are:
Suspension Secrets products are designed and manufactured in-house the UK. All Suspension Secrets products include a full Lifetime Warranty including bearings.
Toe
Toe is the angle between each wheel with relation to the longitudinal axis of the vehicle. It is usually measured when the car is static and is measured either in degrees or in millimetres. If it is measured by distance then it is usually the difference in distance between the two rear edges of the tyres and the two front edges of the tyres.
The measure of toe in degrees is usually the angle of the wheel away from the perpendicular longitudinal axis of the car where toe in is defined as positive and toe out is written as negative
All Suspension Secrets upgrades are designed, developed and manufactured in-house. This process includes prototyping new products using CAD and 3D printing technology, and extensive rear-world testing with professional racing drivers. Sophisticated motorsport data capturing equipment allows us to measure the handling performance gains achieved by our parts.
