The best suspension upgrades for the Chevrolet Corvette C8 aren’t necessarily about making the car stiffer or simply lowering it. The C8 already has an excellent chassis, but when driven hard on the road or track, suspension compliance, bump-steer and changes in alignment can start to affect how consistently the tires work.
The right upgrades help to control these changes and keep the suspension geometry where it should be. In this C8 suspension tuning guide, we’ll look at the main handling characteristics of the platform and how upgrades such as monoball bushings, adjustable bump-steer links, rear toe arms and adjustable sway bar (anti-roll bar) links can improve the way the car responds.
C8 Suspension & Handling Overview
The C8 uses double-wishbone suspension front and rear, with individual coil springs and a mid-engine layout that gives the car excellent traction and balance.
The factory rubber bushings are designed to provide a good compromise between handling and road comfort. Under heavy cornering loads, however, they can flex enough to allow the suspension geometry to move.
That means the camber and toe figures set during an alignment aren’t necessarily the figures the tires see when the car is being pushes hard.
Common Handling Problems
Suspension bush compliance can allow camber and toe to change under load
Rear toe movement can affect stability and traction
Bump-steer can introduce unwanted toe changes through suspension travel
Lowering the car changes the angles of the suspension and steering links
The factory adjustment range can become limiting with more aggressive alignment settings
These issues become more noticeable as cornering speeds and tire grip increase.
For this reason, C8 suspension tuning is about controlling geometry as much as adding stiffness. Monoball bushings reduce unwanted movement, adjustable bump-steer links allow the toe behavior through suspension travel to be corrected, and adjustable rear toe arms provide more alignment range and control.
The result is a C8 that responds more consistently to steering and throttle inputs, with better control of the tires when the car is being driven hard.
Common Handling Problems (And How to Fix Them)
When driven hard, suspension compliance and geometry changes can affect how consistently the C8’s tires work.
The most effective fixes are:1. Reducing bush movement with monoball bushings2. Controlling bump-steer with adjustable links3. Improving rear toe control with adjustable toe arms4. Correcting geometry with a professional alignment
Together, these upgrades help the C8 to respond more consistently to steering, braking and throttle inputs.
Suspension Geometry & Alignment Setup (Top Tip)
A full suspension geometry alignment is essential after installing new suspension parts.
By correctly adjusting camber, toe, and caster (where available), alignment ensures you maximize grip, stability and tire life.
Benefits of Proper C8 Geometry Setup
Sharper steering response
Increased cornering grip
Improved rear traction
Enhanced braking stability
A professional alignment is the single most cost-effective handling upgrade you can make.
Essential Upgrades
No matter whether you are looking to increase handling performance for the road or track, the following two suspension upgrades should form the foundation of your upgrade plans.
These bolt-on components will improve body control and allow more aggressive suspension settings to be dialed into the platform.
Lowering Springs
C8 STINGRAY SPRINGS
Lowering springs are one of the simplest ways to give the Corvette C8 Stingray model a more focused suspension setup. By reducing ride height, they lower the car’s center of gravity and help to control body movement under braking, acceleration and cornering.
The C8 Stingrays equipped with the ‘Z51 Performance Package’ feature threaded spring sets for ride height and corner weighting adjustment. Aftermarket lowering springs can be used alongside this hardware to achieve a greater overall reduction in ride height than the factory adjustment alone.
C8s fitted with Front Lift use a different front suspension arrangement, so the correct compatible spring kit must be used if the hydraulic nose-lift function is to be retained.
Benefits of lowering springs are:
Lower center of gravity
Reduced body roll, dive and squat
Sharper chassis response
Greater ride height reduction on Z51-equipped cars
Improved stance while retaining factory systems where compatible
For fast road and track use, lowering springs offer a straightforward way to improve body control and chassis response without moving to a complete coilover setup.
Adjustable Rear Toe Arms / Links
ORDER C8 TOE ARMS
When additional rear camber is introduced for track use, the factory toe links can run out of adjustment. This makes it difficult to achieve the desired camber and toe settings simultaneously. Lowering the C8 can also alter the angle of the rear toe link, introducing unwanted toe change as the suspension moves through its travel.
The Suspension Secrets Adjustable Rear Toe Arms/Links give Corvette C8 Stingray, Z06 and ZR1 owners a wider range of rear toe adjustment while also providing a way to correct rear bump-steer on lowered cars.
Suspension Secrets toe arms use a billet aluminum mounting bracket with three mounting positions, allowing the height of the toe link to be altered to reduce bump-steer. An outboard adjuster also provides an extended range of toe adjustment, while the solid-mounted design helps to keep rear toe more consistent under cornering loads.
Main benefits:
Increased rear toe adjustment range
Reduced rear bump-steer on lowered cars
More consistent toe under suspension movement and cornering loads
Improved rear axle stability and traction
Greater freedom to run increased rear camber without compromising toe
Sharper feedback and a stronger connection to the rear axle
For C8 drivers looking to optimize the rear suspension geometry for fast road and track use, our Adjustable Rear Toe Arms provide the additional adjustment required to precisely control rear camber, toe and bump-steer.
C8 Upgrades for Road & Track
With more track driving comes the need to further increase handling precision and ensure your sway bar (anti-roll bar) is fulfilling its intended purpose.

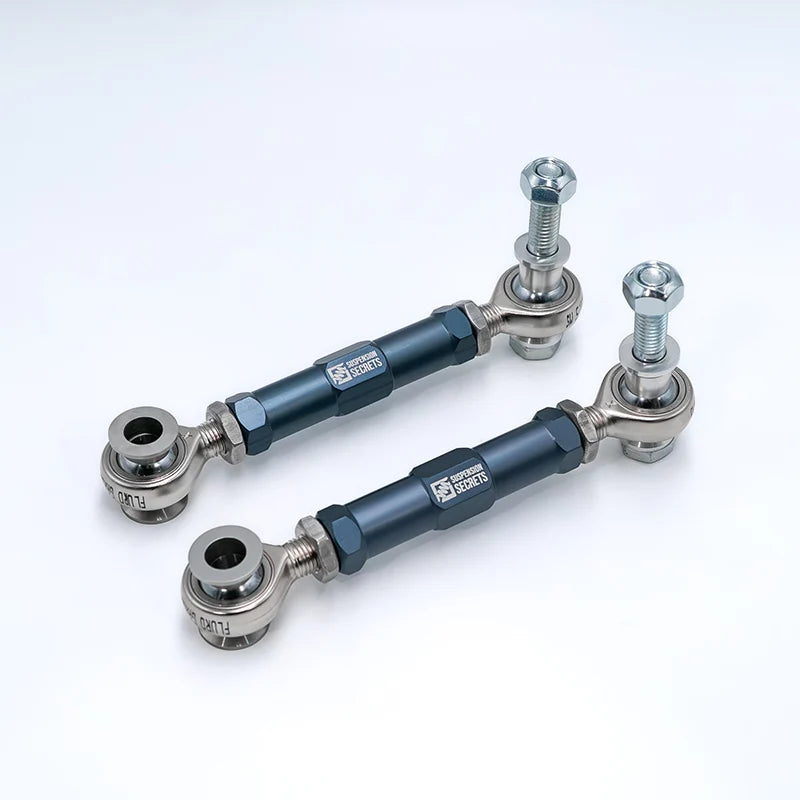

Adjustable Rear Sway Bar End Links/Drop Links
ORDER C8 DROP LINKS
The C8’s rear sway bar (anti-roll bar) works effectively in standard form, but lowering the car or corner weighting it can introduce preload into the system. As ride height changes, the sway bar is repositioned and the factory drop links can place the car and its bushings under tension even when the car is sitting at rest.
This becomes particularly important on cars that have been corner weighted, where ride heights can differ slightly from one side of the axle to the other. With fixed-length drop links, this can preload the rear sway bar in one direction, potentially creating a different response in left- and right-hand corners.
The Suspension Secrets Adjustable Rear Sway Bar End Links/Drop Links solve this by allowing the length of each link to be adjusted independently. This enables the rear sway bar to be returned to a neutral, preload-free position at the car’s chosen ride height. Motorsport-spec joints are also used for improved performance and durability.
What this upgrade offers:
Reduced unwanted rear sway bar preload
More consistent handling in left- and right-hand corners
Improved rear axle stability
More predictable sway bar response
Better suited to lowered and/or corner weighted C8s
For C8 owners lowering and/or corner weighting their car for fast road or track use, adjustable rear drop links are an important part of ensuring the sway bar continues to work as intended. Rather than introducing unwanted forces into the chassis.

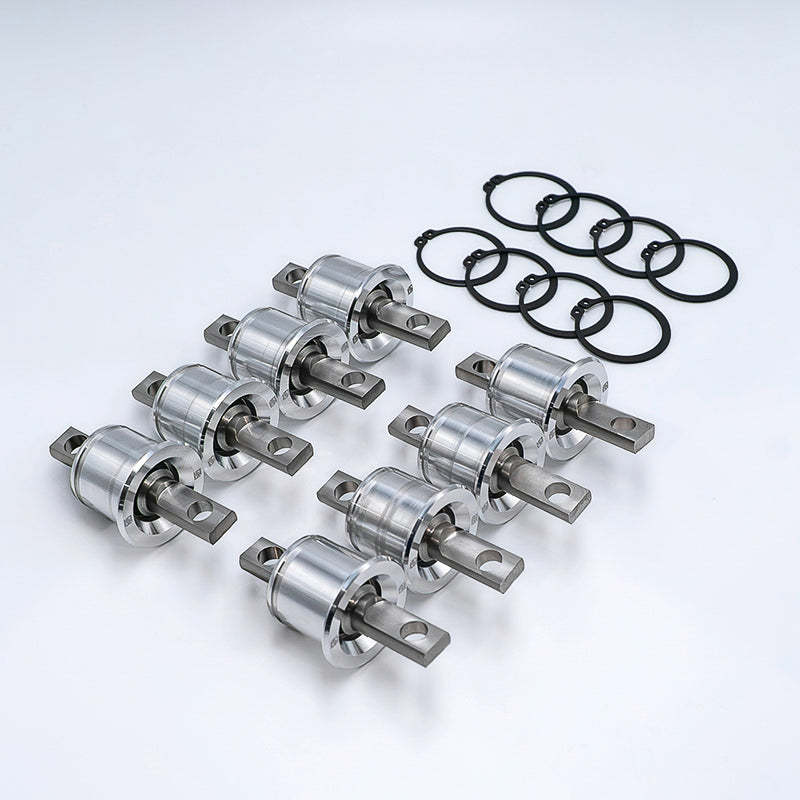

Front & Rear Upper Control Arm Monoball Bushing Kit
UPGRADE C8 MONOBALLS
The Corvette C8’s factory rubber control arm bushing can flex under hard cornering, allowing unwanted changes to camber and toe. This becomes more noticeable on track, especially with grippier tires.
The Suspension Secrets Control Arm Monoball Bushing Complete Kit replaces key front and rear rubber bushing with 12 billet aluminum monoball bushings using motorsport-grade spherical bearings.
Solid monoball key benefits:
More consistent camber and toe under load
Improved front and rear axle stability
Increased cornering grip and traction
Sharper suspension response
Greater feedback through the chassis
The kit includes four Rear Lower, four Front Upper and four Rear Upper Monoball Bushings. Front lower bushings are excluded to avoid introducing unwanted vibration from the C8’s electronic steering system.
Aftermarket Coilovers
BUY C8 COILOVERS
The Corvette C8’s factory suspension balances performance with everyday usability, leaving plenty of scope to improve body control and damping consistency for fast road and track driving. Aftermarket coilovers combine uprated spring rates with more performance-focused damper valving, reducing body roll, pitch and unwanted suspension movement while giving the tires a more stable platform.
A 2-way system such as the KW V3 allows rebound and compression damping to be adjusted independently, giving useful control over ride, body movement and chassis balance.
A 4-way system such as the KW V5 (and V5 Clubsport) goes further by separating high- and low-speed compression and rebound adjustment. This allows finer tuning of body control, weight transfer, curb strikes and surface changes.
For regularly tracked C8s, 2-way coilovers offer strong adjustability without unnecessary complexity, while 4-way dampers provide the finer control needed for more serious circuit setup work.
C8 Track Upgrades
For more serious track driving, even greater emphasis should be placed on controlling how accurately the chassis maintains its geometry under load. Higher cornering speeds, stronger braking forces and greater tire grip all place more demand on the suspension, exposing movement and compliance that may go unnoticed on the road.
At this level, the aim is to reduce unwanted deflection, control toe and camber changes through suspension travel, and make the car respond more consistently to steering, braking and throttle inputs. The result is a C8 that feels more precise, predictable and confidence-inspiring when driven hard on circuit.
Rear Lower Control Arm Monoball Bushing Kit
ORDER C8 MONOBALLS
The Suspension Secrets Rear Lower Control Arm Monoball Kit replaces the C8’s factory rubber lower control arm bushings with four billet aluminum monoball bushings featuring motorsport-grade spherical bearings.
By eliminating the flex in the OEM bushings, the kit helps to keep the rear camber and toe consistent under hard cornering, giving the rear axle a more stable and predictable platform. This is particularly beneficial on track, where increased grip from performance tires can amplify suspension deflection.
The result is:
Reduced unwanted suspension flex
More consistent rear camber and toe under load
Improved rear end stability and traction
Sharper suspension response and cornering agility
Greater feedback and connection between the tires and chassis
C8 drivers searching for the ultimate monoball solution should consider the Suspension Secrets Control Arm Monoball Bushing Complete Kit. This package includes Rear Lower Monoball Bushings, Front Upper Monoball Bushings and Rear Upper Monoball Bushings.

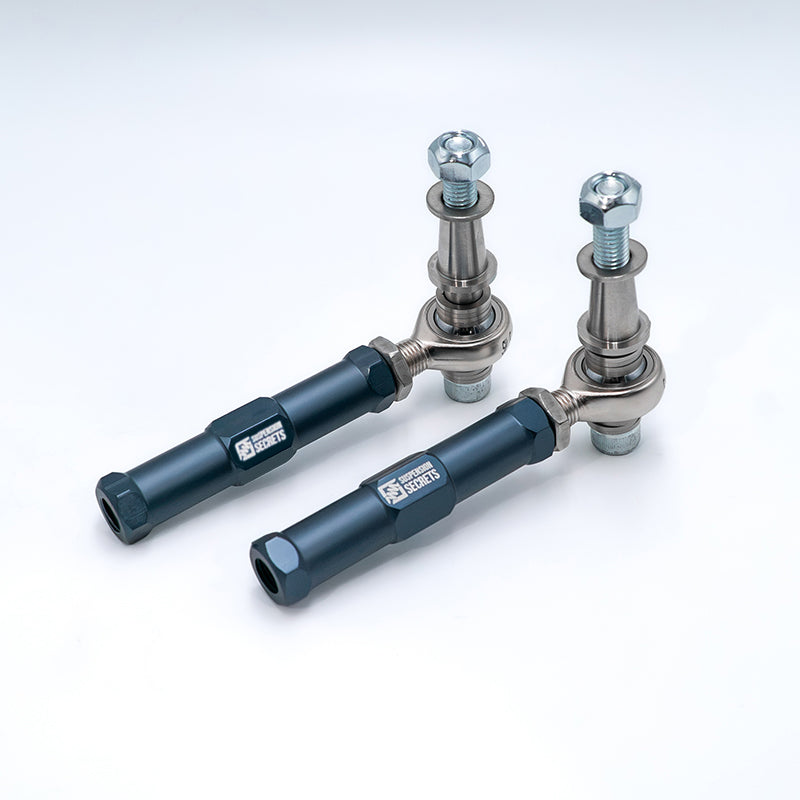

Adjustable Bump Steer Tie Rod Ends / Steering Links
ORDER C8 STEERING LINKS
After lowering the C8 for fast road and track work, bump-steer can become an issue. This is because lowering the car with aftermarket springs or coilovers alters the steering arm geometry, which causes the front toe angle to change as the suspension moves through bump and droop.
This situation can make the steering less predictable, particularly when cornering over bumps and kerbs on track. Suspension Secrets Adjustable Bump Steer Tie Rod Ends/Steering Links allow the steering arm angle to be corrected for the new ride height and dramatically reduce or even completely remove the bump-steer issue.
Key benefits include:
Removes unwanted front bump-steer caused by altered suspension geometry
Fully adjustable in 2mm increments for precise geometry setup
Improves steering feel and accuracy
Helps to reduce understeer
Increases confidence and stability when driving at the limit
Particularly useful for lowered, track-focused C8s
Correcting bump-steer is key to maintaining predictable steering behavior on lowered C8s, while making the most of the available front-end grip on circuit.
Complete Suspension Package
If you’re ready to take handling performance to the next level, Suspension Secrets offers a complete C8 suspension package for track use.
Full Kinematics Kit
BUY THE PACKAGE
The Suspension Secrets Full Kinematics Kit is a track-focused suspension package for the Corvette C8 Stingray, Z06 and ZR1. The package is designed to improve grip, stability and driver confidence for cars already equipped with aftermarket coilovers.
Together the components detailed below provide greater adjustment of camber and toe, reduce unwanted suspension movement and help to optimize the C8’s suspension geometry for track use. The result is more consistent handling, increased cornering grip and greater stability when pushing the car on circuit.
Includes:
Suspension Secrets Control Arm Monoball Bushing Complete Kit (12 monoballs)
Suspension Secrets Adjustable Rear Toe Arms / Links (x2)
Suspension Secrets Adjustable Bump Steer Tie Rod Ends / Steering Links (x2)
Suspension Secrets Rear Sway Bar End Links / Drop Links (x2)
Solid Front Offset Caster Bushes (x2)
Best for: Dedicated track cars and competition use
All Suspension Secrets parts are designed and manufactured in-house in the UK, with a lifetime warranty including the bearings.
Corvette C8 Suspension FAQ
What are the best suspension upgrades for the Corvette C8?
A good starting point is lowering springs, adjustable rear toe arms and a professional geometry setup. For more serious track use, monoball bushings, bump-steer correction and adjustable sway bar links can further improve precision and consistency.
Do lowering springs work with the C8 Z51 Performance Package?
Yes. Lowering springs can be used with the Z51 suspension to achieve a greater reduction in ride height than the factory threaded spring seat adjustment alone.
Does lowering a Corvette C8 cause bump-steer?
Lowering alters the angle of the steering links, which can increase unwanted toe change as the suspension moves through bump and droop. Adjustable bump-steer links allow this geometry to be corrected.
What do monoball bushings improve on the C8?
Monoball bushings reduce the deflection found in the factory rubber bushings, helping to keep camber and toe more consistent under load while improving suspension response, grip and driver feedback.
Is a wheel alignment necessary after fitting C8 suspension upgrades?
Yes. A full geometry alignment is essential after fitting suspension components so camber, toe and other adjustable settings can be optimized for grip, stability and tire life.
Developed and manufactured in-house by Suspension Secrets, these Corvette C8 suspension upgrades unlock more precision, grip, stability and control from the platform to achieve a new level of handling performance...
